Heating Marlborough and The BBQ Hub

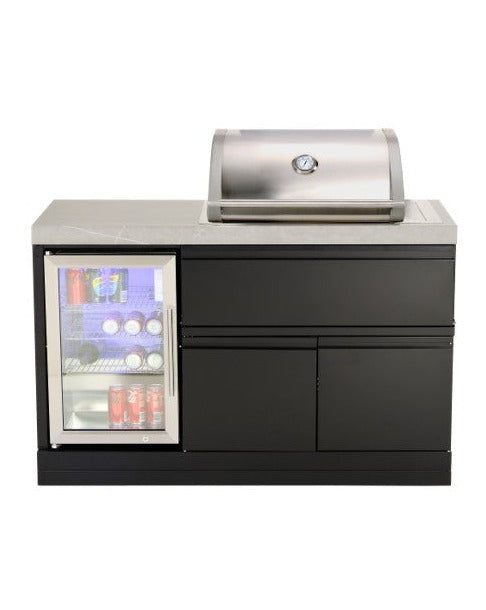

Crossray 2-Burner Drop-In Mini Kitchen

Crossray 2-Burner Drop-In Mini Kitchen

Regular price $5,519.00 NZD
Regular price Sale price $5,519.00 NZD
Sale Sold out

The New CROSSRAY Mini Outdoor Kitchen with the new 2 Burner Drop In gas BBQ elevates outdoor cooking to a whole new level – perfect for your, courtyard or alfresco area. Add a real touch of class with this unique, world class fully-equipped kitchen, that gives you everything you need to prepare the perfect meal for family and friends.


  • Complete, compact outdoor kitchen featuring a flush-mounted CROSSRAY 2B gas BBQ, single fridge, with stone benchtop and under-bench storage
  • High intensity, high temperature output gas BBQ – in-built so that it is flush with the benchtop.
  • Features a high quality sintered stone benchtop (60mm edge) and 63L single SS fridge with temperature control, triple glazing, blue LED back-lighting and lockable.
  • Perfect for smaller backyards & alfresco areas, townhouses, balconies & apartments
  • Cabinet includes a drop down top shelf and 2 door storage space underneath (with magnetic closure). Cabinets upgraded to zinc coated/powder coated steel to ensure corrosion protection
  • 2B flush mounted BBQ, 2 x 13MJ angled ceramic infrared burners. Flame failure included as standard and meets indoor code
  • BBQ with dual level cooking surfaces, double skin hood, 140C to 350C+ temperature output
  • Electronic ignition with knobs in a concealed control panel next to the BBQ. Front kickboards included as standard. Side kickboard optional
  • Cook with the lid up or down. Plenty of hood height for large meats. Compatible with a rotisserie. NG conversion and top access conversion kits available

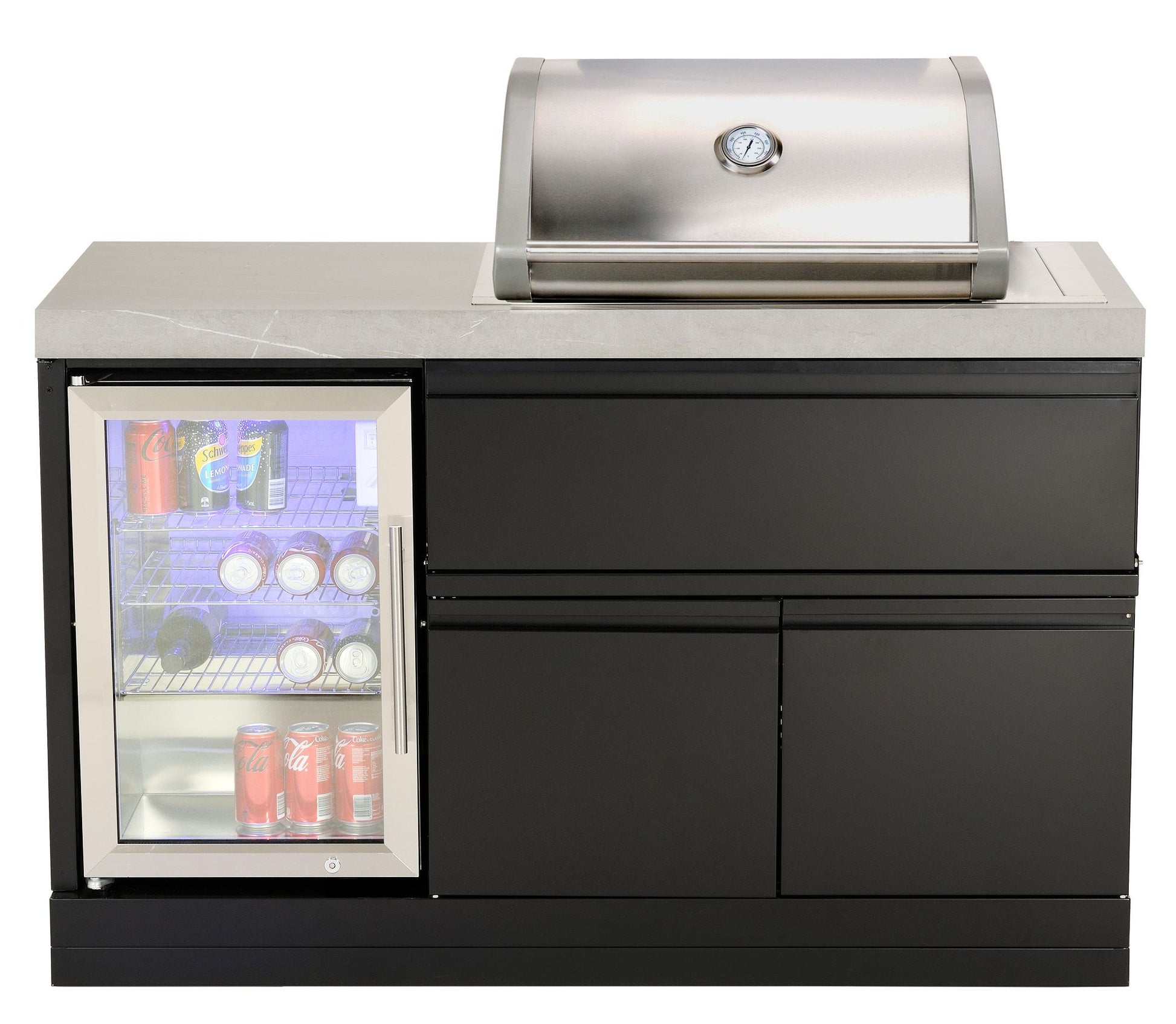

Mini Kitchen with single fridge

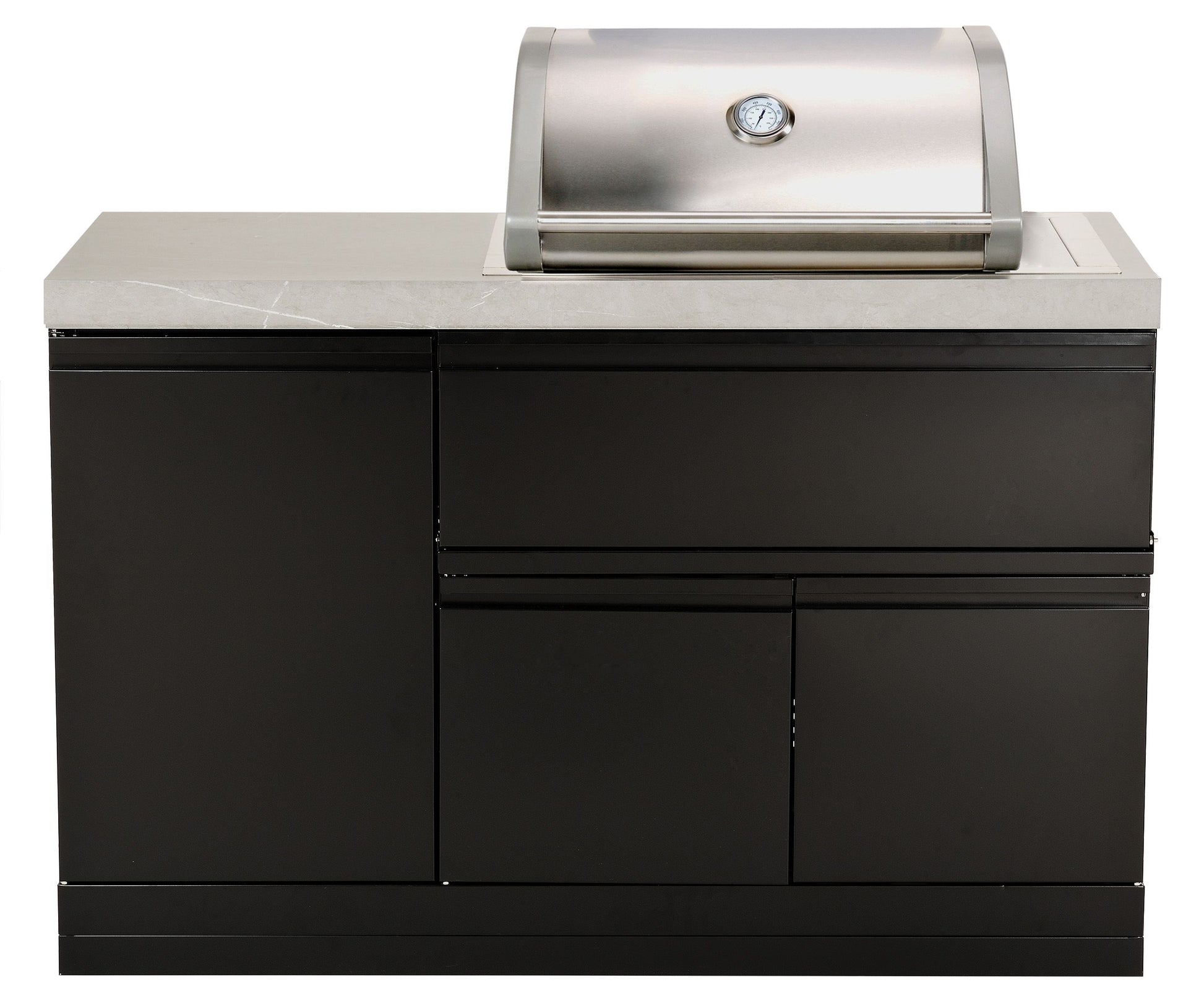

Mini Kitchen

High quality one-piece sintered stone benchtop (60mm mitred edge)

Zinc/powder coated black cabinet with double skinned doors and fold-down top shelf

Flush mounted 2 burner gas BBQ with ceramic infra-red burners, flame failure device comes as standard

63L/60w single SS fridge with temperature control, triple glazed lockable door and blue LED back-lighting

All CROSSRAY BBQ’s come with grill plates as standard

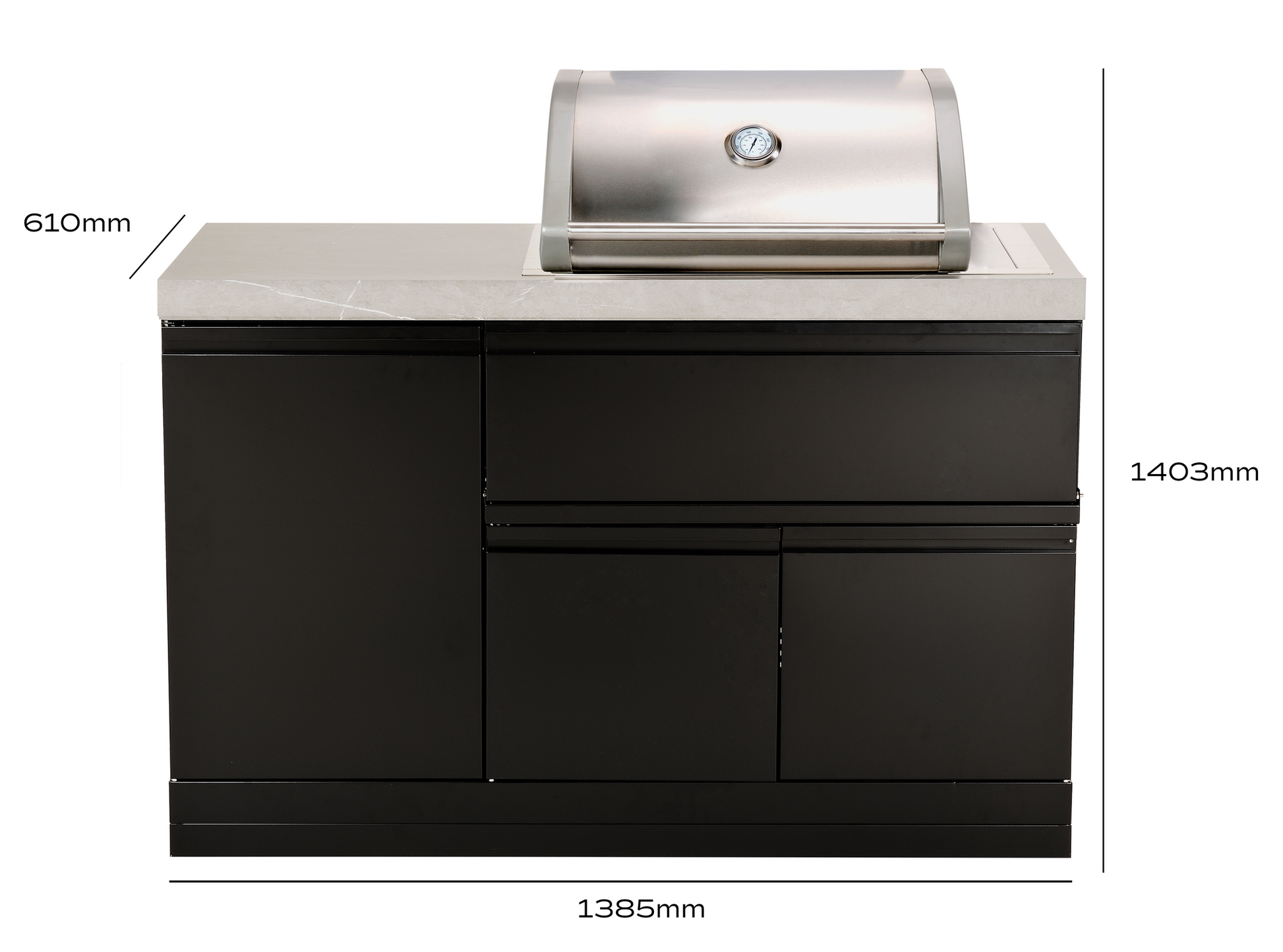

1385mm (W) x 610mm (D) x 1403mm (H)
Cooking area: 3556cm2
TC2K-MK1 - 131kgs
TC2K-MK2 - 102.3kgs


  • BBQ: 304 Stainless Steel front and rear body panels
  • Die cast aluminum side and end panels
  •  2 x surface combustion infrared burners
  • Single Stainless steel Fridge, 63L, LED backlights
  • Cabinet: Satin black, zinc coated/powder coated steel with double skinned doors
  • Benchtop: One-piece sintered stone with 60mm edge


  • BBQ: Refer to model TCS2-IBL for more detailed information.
  • Burner capacity 13MJ/hr each (Total 26 MJ/hr)
  • Includes BBQ head only
  • 2x BBQ grills and 2-piece SS upper cooking rack included
