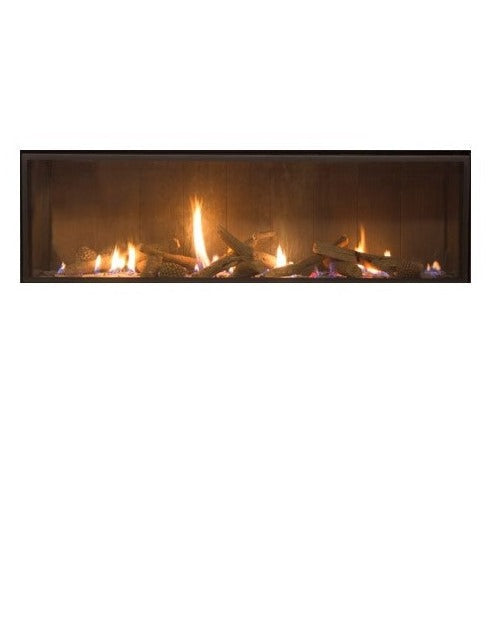

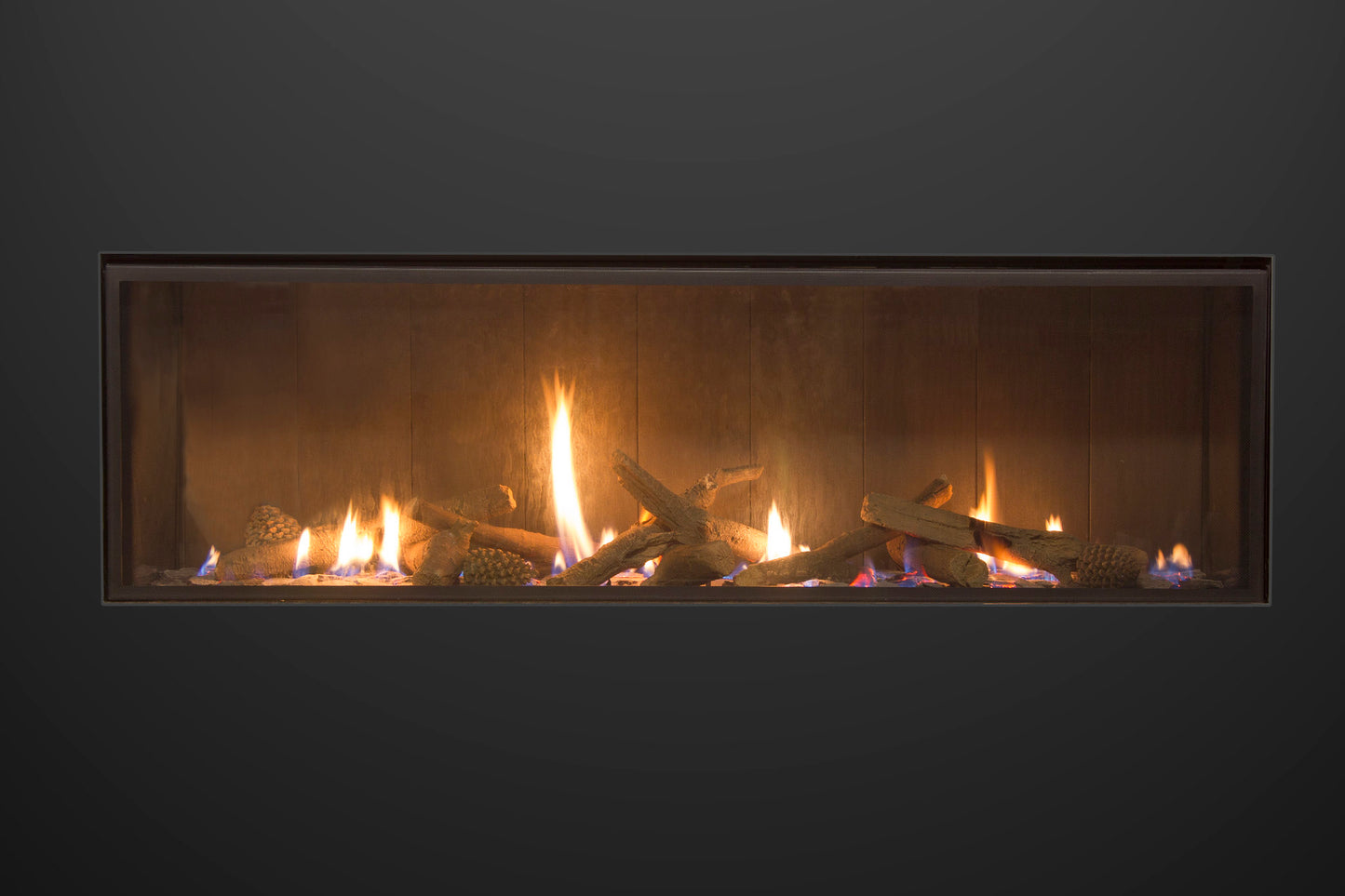

Escea DS1400 Frameless High Output Gas Fire

Escea DS1400 Frameless High Output Gas Fire

Regular price $11,995.00 NZD
Regular price Sale price $11,995.00 NZD
Sale Sold out
Size

The DS Series has a small footprint and a big impact - the fire is frameless, drawing your eye straight to the flames. With a large window, the single sided DS Series gives you a clear view of the generous fuel bed.

The choice of fascia and fuelbed options allow you to customise your fireplace to suit your home. And with a low height and Escea’s Flexible Flue and Powered Vent technology, you have the freedom to put the fireplace anywhere. No walls required and no compromise on your design.

Truly Frameless

The DS Series has taken away everything you don’t need for a minimalist look that focuses on the flame. These fires are truly frameless – where the wall ends the glass begins.

SPECIFICATIONS

  • Max Energy Input - 40 MJ/hr
  • Gas Type - Natural Gas or LPG
  • Approx. Appliance Size [mm] - 1693w x 788h x 350d
  • Viewable Glass Size [mm] - 1360w x 411h
  • Fuel Bed Options - Logs, Woodland Selection, NZ River Rock, Black Coals, White Coals, Black Crystalight, White Crystalight,
  • Star Rating - 5 Stars (Will vary slightly depending on gas and flue type)

FEATURES

  • Truly Frameless
  • Smart Heat
  • Powered Direct Vent Heat

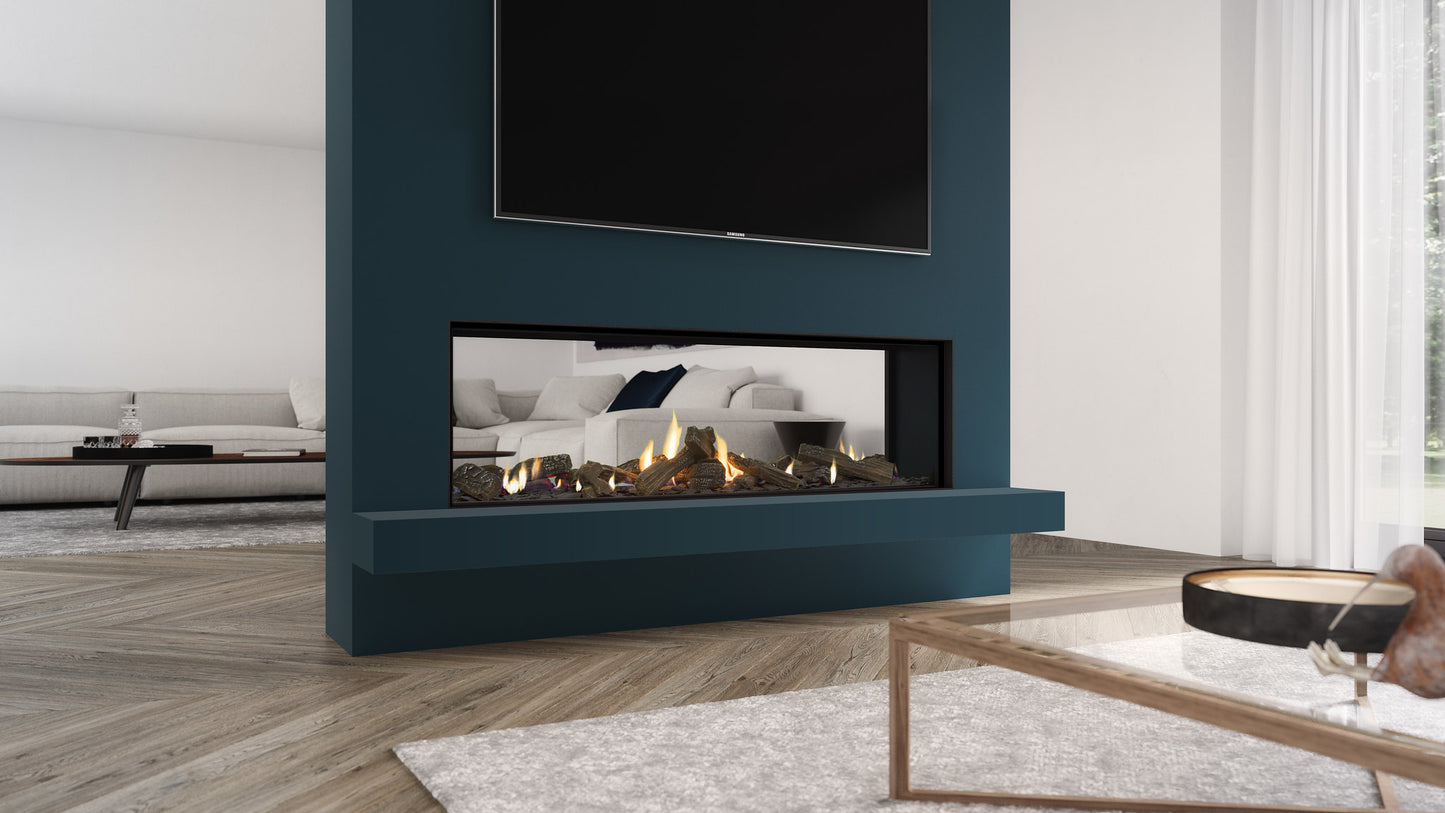

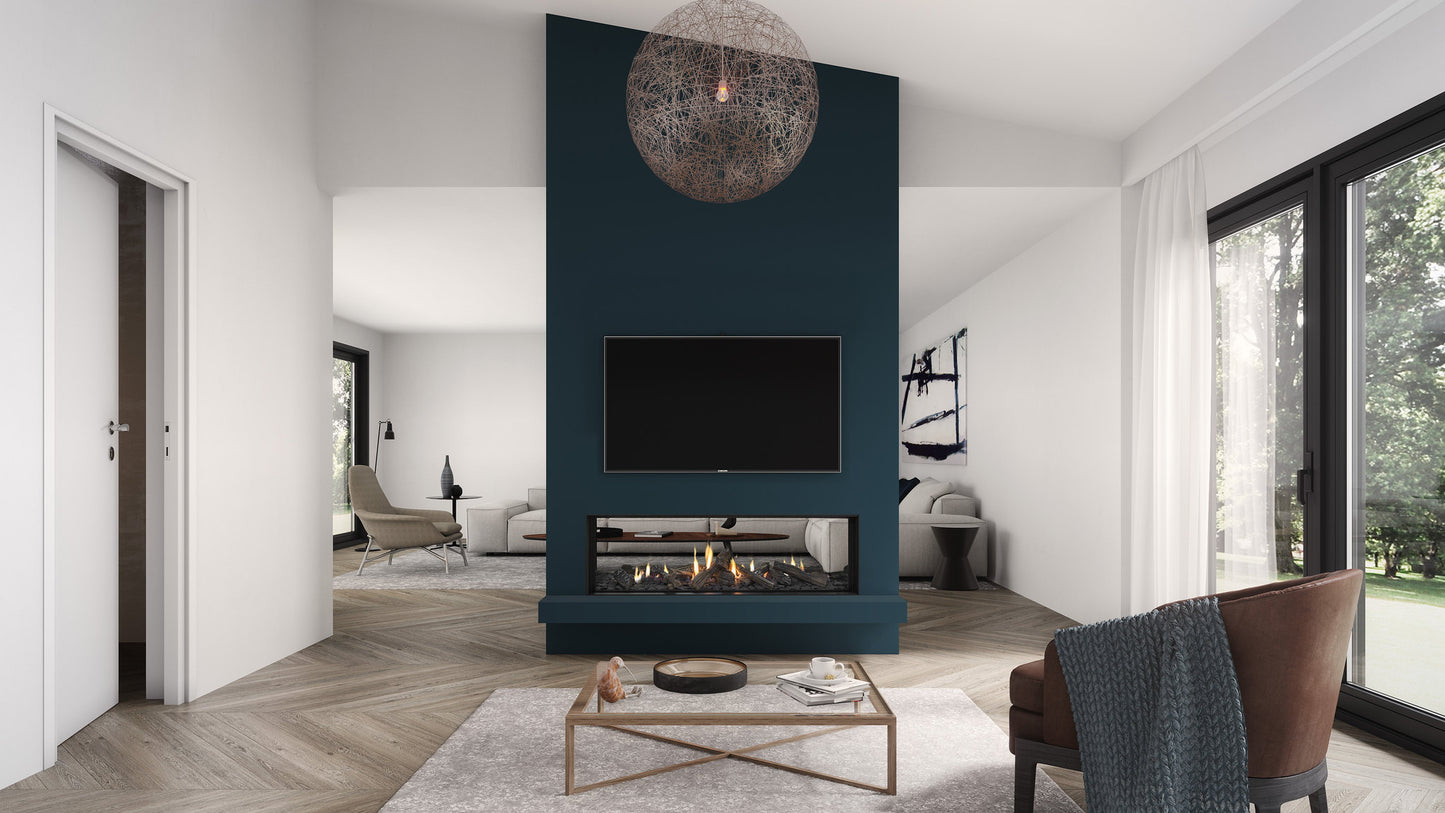

  • Single or Double Sided Option
  • Zero Clearance
  • Reflective Side Panels
  • Wire Mesh Screen option

WARRANTY

  • Firebox Warranty 5 Years
  • Total Warranty 2 Years

Price includes: Reflective Side Panels & Standard Fuel Bed (excludes Driftwood with Crystalight)

*Extras: Flue, Install, Fascia

PRODUCT CODES:

908051 - Escea DS1400 LPG Single Sided Fireplace
908063 - Escea DS1400 LPG Double Sided Fireplace
908200 - Escea DS1400 Woodland Selection
908240 - Escea DS1400 Logs
908202 - Escea DS1400 Black Coals (Large)
908203 - Escea DS1400 White Coals (Large)
908204 - Escea DS1400 New Zealand River Rock (Large)
908205 - Escea DS1400 White Crystalight
908206 - Escea DS1400 Black Crystalight
908270 - Escea DS1400 Linear Trim Kit
- An optional minimal black trim surround to assist with gib wall installs where no fascia is required. Refer to install guide for further details.
808053 - Escea DS1400 Cabinetry Extended Trim Kit
- Enables Clading around the fire with a greater number of finishes. This may eliminate the need for edging as the Extended Trim Kit will finish flush with most claddingss up to 20mm thick.
908250 - Escea DS1400 Volcanic Black Bevelled Lite Fascia
908251 - Escea DS1400 Titanium Silver Bevelled Lite Fascia
908013 - Escea DS1400 Heat Flow Adjuster Kit
-Optional accessory for double sided DS1400 fireplaces only to adjust the heatflow between each side of fireplace. Only 1 kit to be used per fireplace.
908264 - Escea DS1400 Superfine Mesh Screen Kit
908276 - Escea Skamol Board Kit for Hutch Installation
-Heat protection board for the top and sides of the hutch style low wall install. 2x Skamol boards at 1220 x 500 x 25mm.
View full details
