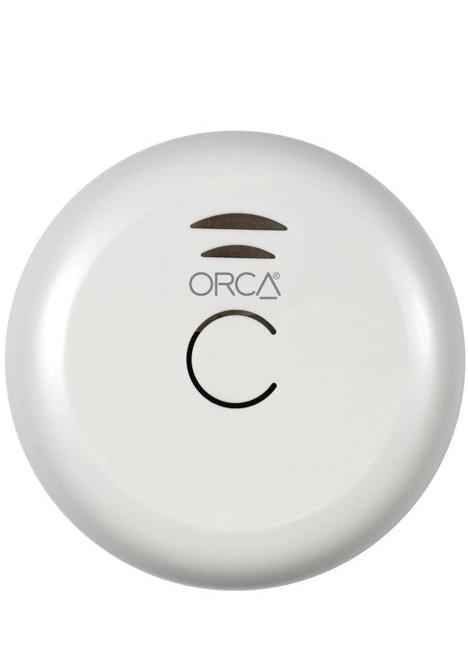

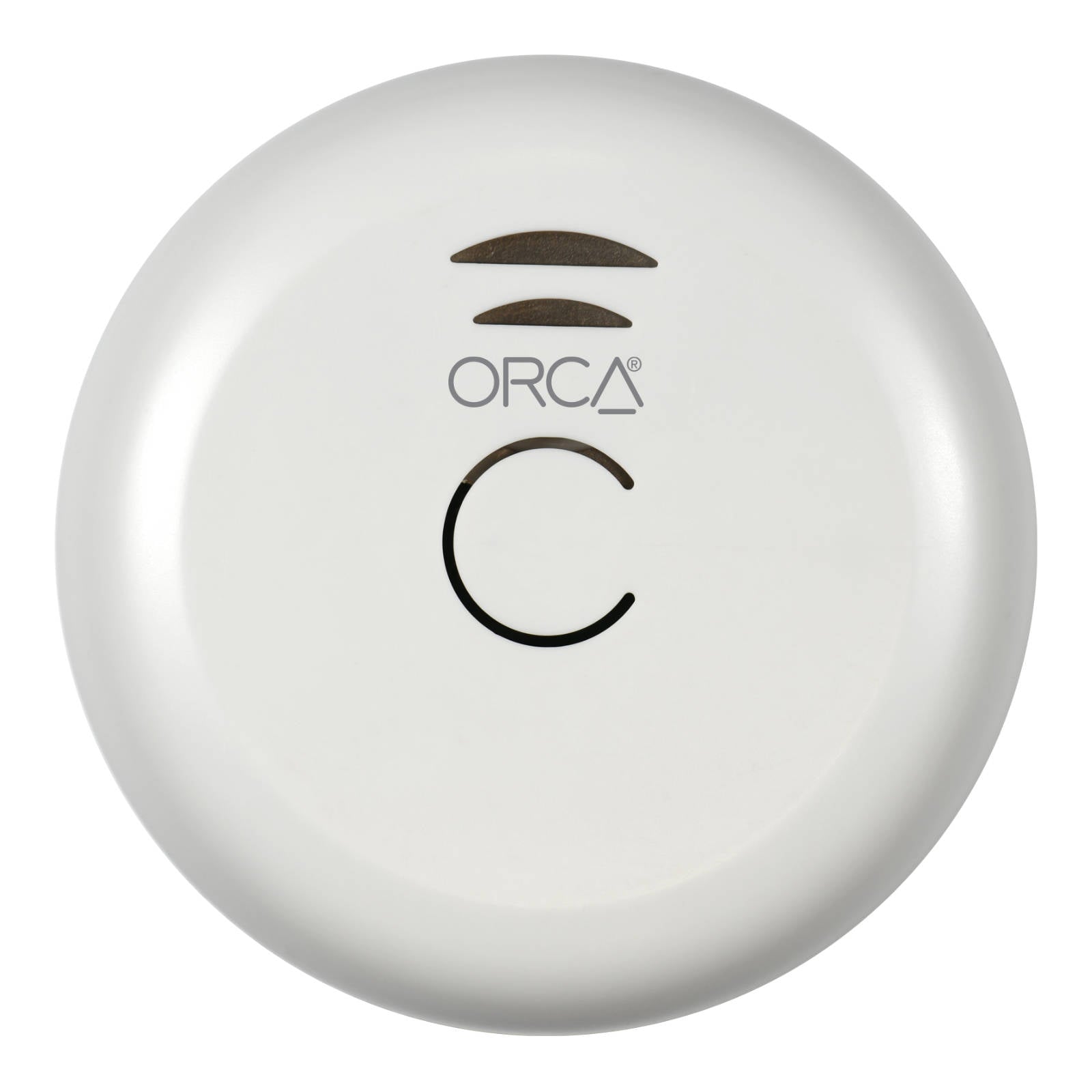

Orca White Wireless Interlink Smoke Alarm

The Orca Intelligent Wireless Interlink Technology allows multiple units to be wirelessly interlinked to protect the whole household. When one alarm activates, the entire network activates. These alarms are the future of smoke and fire detection. In larger residences, they provide peace of mind knowing that a small fire emerging away from where people are sleeping will still provide an immediate close proximity warning allowing action to be taken before the fire gets out of control.

• Photoelectric sensor – best at sensing smoke from slow smouldering fires
• Ideal for living rooms, hallways and bedrooms
• Test button
• Hush feature
• Long-life built-in lithium battery
• Extra loud warning tone
• Low battery warning
• 10 year warranty
• Fully compliant with NZ Building Code (Certified to EN14604:2005)
• Meets NZ Government 2016 Rental Housing Legislation
• Complies with NZS 4514:2021

TECHNICAL SPECIFICATIONS

TECHNOLOGY - Photoelectric Sensor

DIMENSIONS - 82mm Wide x 82mm High x 34mm Deep

WEIGHT - 73g

POWER SOURCE - 10 Year Sealed Lithium Battery

SUPPLY VOLTAGE - 3v DC

OPERATING FREQUENCY - 868.3 MHz

ALARM SOUND LEVEL - 85db (A) at 3m (Minimum)

OPERATING TEMPERATURE - +4C to +38C

OPERATING HUMIDITY - Up to 90% RH Non-Condensing

MAXIMUM CONNECTED UNITS - 30 Units (Smoke, Heat or Controller)

RANGE - 30-50 Metres

TEST/HUSH BUTTON - Yes

INSTALLATION POSITIONS - Ceiling or Wall

CERTIFIED TO - EN 14604:2005/AC:2008

WARRANTY - 10 Years

PRODUCT CODE:

OM866S-10RF
