Wagener Sparky Multifuel
Wagener Sparky Multifuel
A decade ago a conversation was had in Blenheim about a search for a small wood burning stove to suit a mobile home. Many discussions and much research later the Wagener Stoves team saw a gap in the market for a good looking, compact wee fire and in January 2012 Sparky was born.
Sparky has since won hearts all over the country and can be found in many diverse situations and locations from holiday homes to mobile homes, tiny houses to rural cottages and even modern new builds. Across the entire country from hunting huts in Stewart Island to modern new builds in the very Far North and even on boats it seems everyone loves Sparky.

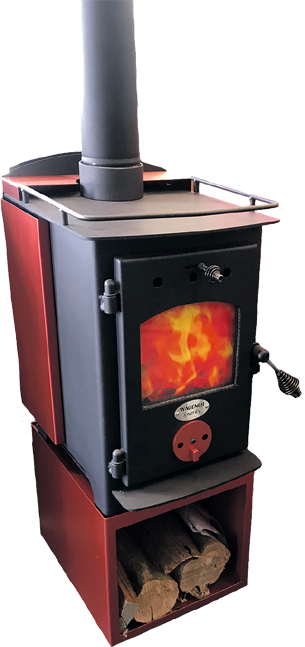

Sparky is a little bit of fun ……. Why not let him brighten your day. We can get the paint set out and add a dash of colour here and there. Think Log box bases, side panels, air controls and heat shield collars in stunning shimmering rose, marine look metallic blue, sky blue or environmental moss green metallic.
Heat Output
Sparky generates a cosy 7kws (estimated) heat output. A “Lion” wet back can be fitted to heat your hot water.
FEATURES INCLUDE:
- Modern clean burning technology
- Solid 5mm steel construction
- Brick lined firebox
- Removable baffle for easy cleaning
- Optional "Lion" Wetback for hot water
- Top and Rear flue outlet
- Cooking surface
- Multi fuel (Wood or Coal)
- Ashpan and grate
- Metallic Black High Temp paint finish
- Optional log box base
- Optional Slimline Flue Kit
Wagener Sparky Dimensions |
|
Height | 505mm |
Height with Log Box base | 795mm |
Width at cooking surface | 350mm |
Width at legs | 310mm |
Depth at base | 400mm |
Depth at ashlip to screen | 490mm |
Flue size | 100mm |
Room heat | 7kw |
Wetback Cold pipe on legs on base Hot pipe on legs on base |
205mm 495mm 285mm 575mm |
Floor protector - see installation guide below |
ENDURING QUALITY & DESIGN
Sparky is New Zealand designed and handcrafted by Wagener Stoves using only the best quality materials sourced locally with a special Hi Temperature paint finish done in-house. Every Wagener Stove is quality control checked before leave to its new home.
WARRANTY
Sparkys firebox is covered by a 5 year warranty. (Please refer to our Installation and Operating Instructions for full details).
PRODUCT CODES:
sparky - Wagener Sparky Multi-Fuel Firebox Top Exit Flue
sparkyrear - Wagener Sparky Multi-Fuel Firebox Rear Exit Flue
sparkybase - Wagener Sparky Multi-Fuel Log Box - Metallic Black
sparkytoprail - Sparky Top Rails
sparkypaintpsr - Sparky Multi-Fuel Panels - Shimmering Rose
sparkypaintpmb - Sparky Multi-Fuel Panels - Metallic Blue
sparkypaintpsb - Sparky Multi-Fuel Panels - Sky Blue
sparkypaintpg - Sparky Multi-Fuel Panels - Metallic Moss Green
sparkypaintcsr - Sparky Multi-Fuel Chassis - Shimmering Rose
sparkypaintcmb - Sparky Multi-Fuel Chassis - Metallic Blue
sparkypaintcsb - Sparky Multi-Fuel Chassis - Sky Blue
sparkypaintcg - Sparky Multi-Fuel Chassis - Metallic Moss Green
sparkypaintbsr - Sparky Multi-Fuel Log Base - Shimmering Rose
sparkypaintbmb - Sparky Multi-Fuel Log Base - Metallic Blue
sparkypaintbsb - Sparky Multi-Fuel Log Base - Sky Blue
sparkypaintlbg - Sparky Multi-Fuel Log Base - Metallic Moss Green
sparkywet - Sparky Multi-Fuel Wetback 1 - 1.2kw
fitting - Factory Fitting of Wetback
sparkytread - Treadle Wall Hearth 610mm x 800mm - Suits Sparky Multi-Fuel with Log Box Base
sparkytreadlegs - Treadle Wall Hearth - Suits Sparky Multi-Fuel Legs Only
sparkylegpro - Treadle Wall Hearth - Suits Legs Only and Promina 12mm
sparkytreadcnr - Treadle Corner Hearth 1100mm x 1100mm
sparkyflukstd - Sparky Multi-Fuel Slim Flue Kit with Slim 1200mm Flue Sheild (Inland)
sparkyflucoast - Sparky Multi-Fuel Slim Flue Kit with 1200mm Flue Sheild (Coastal)
sparkyflashkit - Sparky MF / CA / RU Flashing Kit (Small Dektite/Silicone/Tek Screws)
